Punching

A common question we’re asked is: why punching when you have a laser? The answer lies in speed, efficiency, and cost-effectiveness. While laser cutting is unmatched for intricate profiles and flexibility, punching is significantly faster for repetitive features like holes, slots, and forms — delivering hundreds of strokes per minute.

At Cambridge Rapid, our punching capability complements our laser cutting to offer a high-volume, precision manufacturing solution at highly competitive costs. Our punching machine can process components such as shims, earth tags, and washers at an impressive stroke rate of 600 per minute. For high-volume production, an automated chute system enables rapid part ejection, reducing cycle times and labour costs.

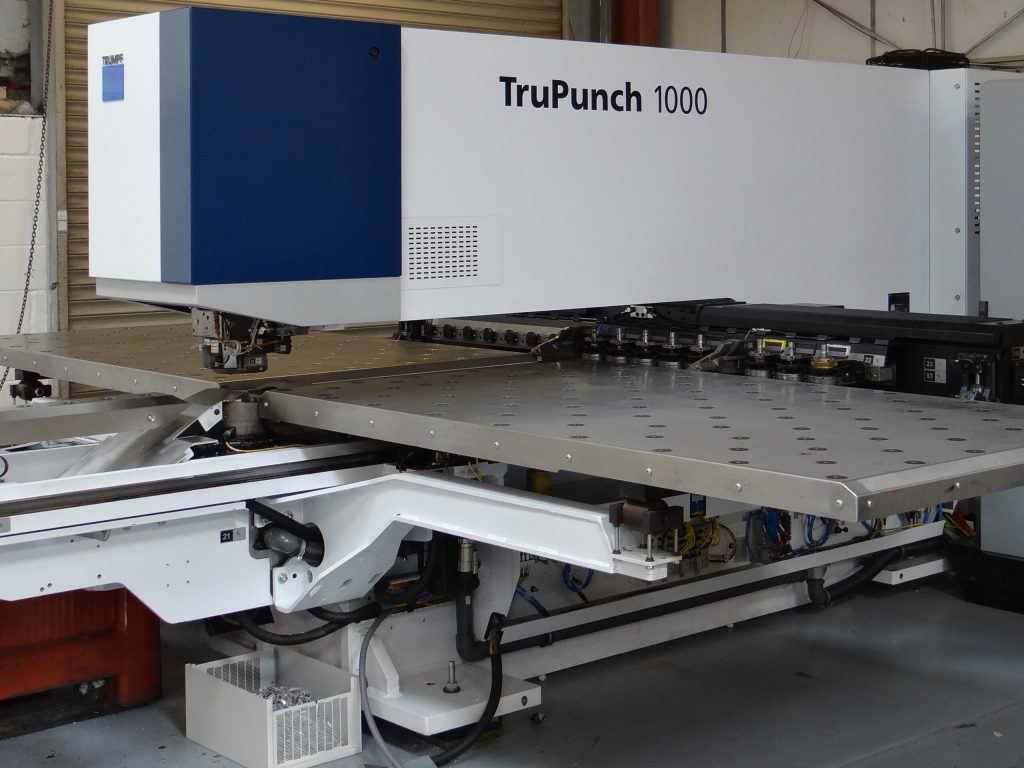

TRUMPF Trupunch 1000

We operate a TRUMPF TruPunch 1000, equipped with:

  • 15 tool stations including a 10-station multi-tool
  • A comprehensive library of standard tooling
  • Custom tooling tailored to specific customer requirements

More information

  • Engraving/Forming on Trupunch
    Our punching machine doesn’t just punch but also engraves product and also produces formed hinges. The engraving gives a different finish to the laser etching on the laser and allows for polishing and other processes to take place. A sample of an engraved finish can be provided on request.
  • What Material can be Punched?
    Mild Steel, Stainless Steel, Aluminium, Brass, Copper, Zintec, Galvanised, ABS
  • Do you have Tool Rotation?
    Our Trupunch has 360-degree tool rotation which means it has the ability to position tools at any angle so it is more efficient on materials, easily programmed, and has lower tool costs.
  • Thickness and Sheet Size
    Material Thickness From 0.5mm to 6mm Sheet Size 2000mm*1000mm although larger sheets can use a reposition
